繼電器模塊與 帶強制引導觸點 6A
Relay module with forced pilot contact
? for safety applications, with class a forced pilot contact relays (EN 50205)
? 2 poles (1no 1 NC), 4 poles (2 No 2 NC and 3 No 1 NC), 6 poles (4 No 2 NC)
? Railway applications
? 35mm guide rail (EN 60715) installation, 22.5MM wide

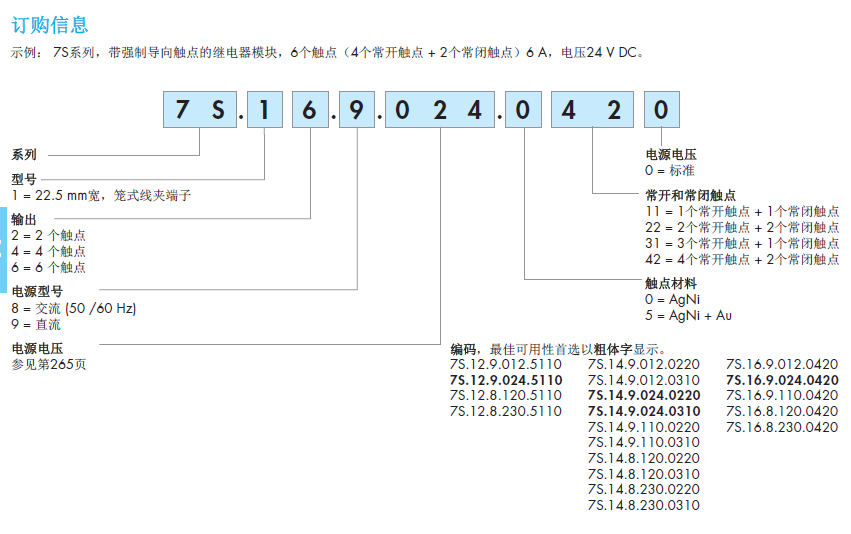

| model |
7S. 12/32.... five thousand one hundred and ten | 7S. 14/34.... 4xx0 | 7S. 16/36.... five thousand four hundred and twenty | |||||||||||||||||||||||||||
| Contact specifications | ||||||||||||||||||||||||||||||
| Contact configuration | 1 No 1 NC | 2 no, 2 NC, 3 no, 1 NC | 4 No and 2 NC | |||||||||||||||||||||||||||
| Rated current / maximum peak current a | 6/15 | 6/15 | 6/15 | |||||||||||||||||||||||||||
| Rated switching voltage V AC (50/60 Hz) | two hundred and fifty | two hundred and fifty | two hundred and fifty | |||||||||||||||||||||||||||
| Rated load AC1 VA | one thousand and five hundred | one thousand and five hundred | one thousand and five hundred | |||||||||||||||||||||||||||
| Rated load ac15 (230 V AC) VA | seven hundred | seven hundred | seven hundred | |||||||||||||||||||||||||||
| Breaking capacity dc1:30/110/220 V A | 6/0.6/0.2 | 6/0.9/0.3 | 6/0.9/0.3 | |||||||||||||||||||||||||||
| Breaking capacity dc13:24 V A | one | three | five | |||||||||||||||||||||||||||
| Minimum switching load MW (v/ma) | 60 (5/5) | 60 (5/10) | 60 (5/10) | |||||||||||||||||||||||||||
| Standard contact material | AgNi Au | AgSnO2 | AgSnO2 Au | |||||||||||||||||||||||||||
| Coil specification | ||||||||||||||||||||||||||||||
| Nominal voltage (UN) | V AC（50/60 Hz） | 110…125 - 230…240 | 110…125 - 230…240 | 110…125 - 230…240 | ||||||||||||||||||||||||||
| V DC | 12 - 24 | 12 - 24 - 110 | 12 - 24 - 110 | |||||||||||||||||||||||||||
| Rated power VA (50 Hz) /w | 2.3/1 | 2.3/1 | 2.3/1 | |||||||||||||||||||||||||||
| Operating range | AC | (0.85…1.1)UN | (0.85…1.1)UN | (0.85…1.1)UN | ||||||||||||||||||||||||||
| DC | (0.8…1.2)UN | (0.8…1.2)UN | (0.8…1.2)UN | |||||||||||||||||||||||||||
| DC extended range (24 and 110 V only) | (0.7…1.25)UN | (0.7…1.25)UN | (0.7…1.25)UN | |||||||||||||||||||||||||||
| Holding voltage ac/dc | 0.45 UN / 0.45 UN | 0.55 UN / 0.55 UN | 0.55 UN / 0.55 UN | |||||||||||||||||||||||||||
| Required voltage ac/dc | 0.1 UN / 0.1 UN | 0.1 UN / 0.1 UN | 0.1 UN / 0.1 UN | |||||||||||||||||||||||||||
